Product Details

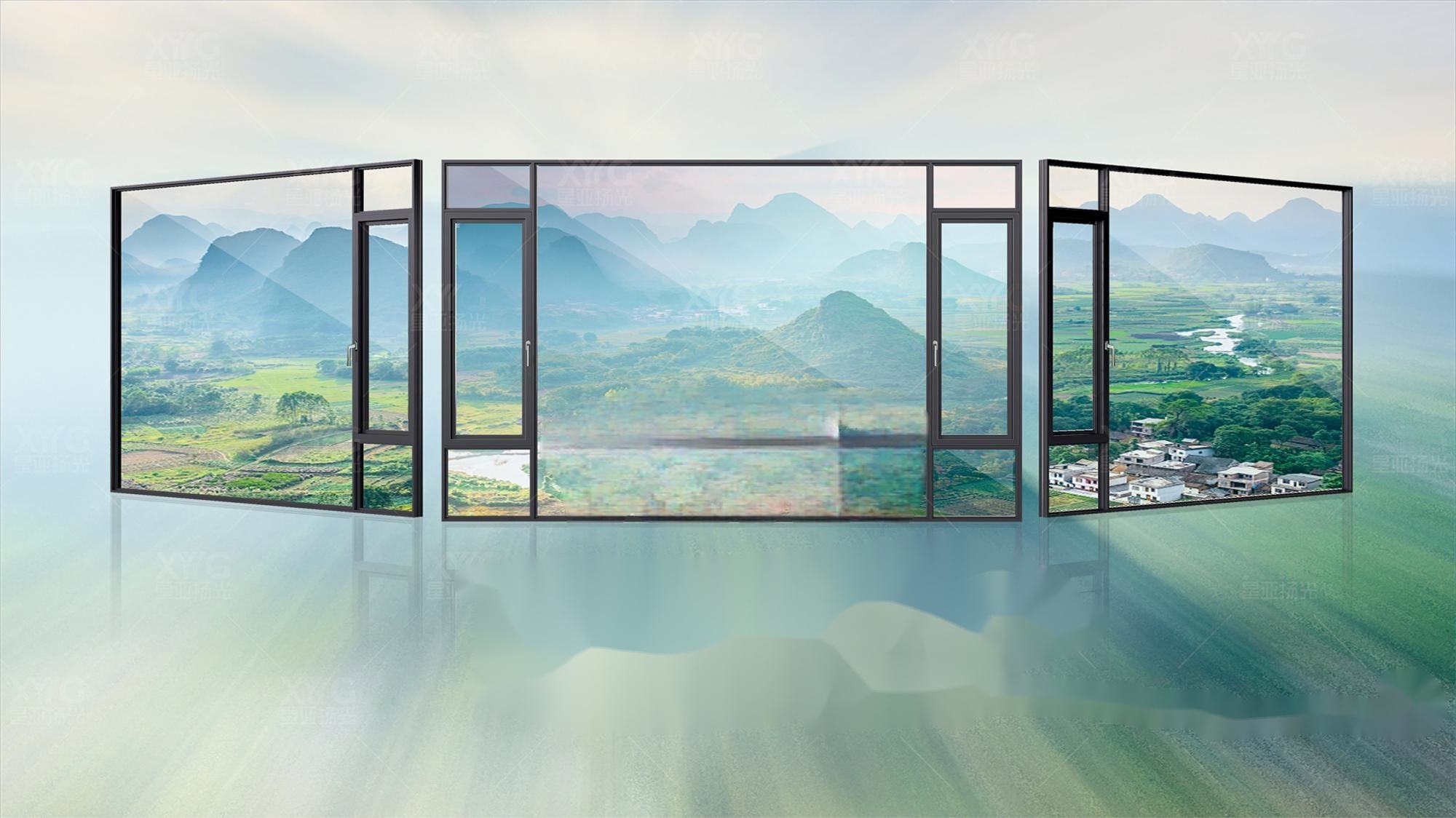

This is the practical and aesthetic minimalist window you have been looking for.
Product features
More extreme丨Laser welding technology is used, seamless beauty, ultimate experience
More transparent丨The visible surface is only 30mm, with a large light transmission area
More solid丨The overall wall thickness of the outer frame can reach 3.0mm, which is more resistant to wind pressure
More sealed丨Three-way sealing design and internal and external pressure strip design are used for better performance
More reliable丨Selected imported hardware from Denmark, safe and durable
More flexible丨A variety of opening schemes are available to meet different usage scenarios
Xingya 30 minimalist broken bridge casement window (splicing type)
|
1.Outward opening window assembly drawing 2.Double inward opening window assembly drawing |
End face width：108mm Visible face width：Outer frame 30mm, middle stile 30mm Hollow glass：5mm+20A+5mm Aluminum thickness：1.8mm、3.0mm Profile technology：6063-T6 aviation grade aluminum water rod Hardware configuration：Stanford Hardware, Shimek Hardware, Osom Hardware Sealing configuration：Haida adhesive strip Profile color：Environmentally friendly powder spraying process Profile structure：Multi-cavity broken bridge structure Energy saving configuration：PA66GF25 thermal insulation strip |
Profile visible surface data
| FRAME | GLASS FAN | CENTRE POST |
| 30mm | 75mm | 56mm |
Xingya 30 minimalist broken bridge casement window (welded type)
|
1.Outward opening window assembly drawing 2.Double inward opening window assembly drawing |
End face width：108mm Visible face width：Outer frame 30mm, middle stile 30mm Hollow glass：5mm+20A+5mm Aluminum thickness：1.8mm、3.0mm Profile technology：6063-T6 aviation grade aluminum water rod Hardware configuration：Stanford Hardware, Shimek Hardware, Osom Hardware Sealing configuration：Haida adhesive strip Profile color：Environmentally friendly powder spraying process Profile structure：Multi-cavity broken bridge structure Energy saving configuration：PA66GF25 thermal insulation strip |
Profile visible surface data
| FRAME | GLASS FAN | CENTRE POST |
| 30mm | 75mm | 56mm |
 |
Narrow edge design, large light-transmitting area, and various opening methods are suitable for different application scenarios. Optional splicing or welding version
Technical dimensions： One-piece external opening: W:550-900mm, H:560-2500mm; |
